Quick Summary
- Incompatible material specifications can void warranties and cause latent defects
- Common issues include dissimilar metals, incompatible sealants, and conflicting coatings
- AI cross-references specs against manufacturer compatibility requirements
- These issues often don't appear until years after construction—when lawsuits follow
"There was an issue with the different materials used on the roof—they don't mesh well together. They don't weld well together. It would void the warranty." This isn't a rare edge case—it's a common problem that creates expensive latent defects and litigation years after construction is complete.
Hidden Time Bombs in Specifications
Material compatibility issues are particularly insidious because they often pass inspection. The materials are installed correctly, per the drawings. The problem is that the drawings specified materials that shouldn't be used together—and no one caught it until the warranty claim gets denied or the building starts failing.
The Real Example
A roof project specified two different metals at a connection point. Both materials met code individually. Both were installed correctly. But when water entered the connection, galvanic corrosion began. Within 2-3 years, the connection failed. The roofing manufacturer denied the warranty claim— their product was fine; the incompatible connection wasn't their problem.
Common Compatibility Issues
Based on AI analysis of construction documents and field defect reports, these are the most common material compatibility problems:
Dissimilar Metals
Issue: Two different metals specified at connections or adjacent locations without isolation.
Common examples:
- • Aluminum flashing against steel structure
- • Copper gutters with galvanized steel hangers
- • Stainless steel fasteners in aluminum panels
Consequence: Galvanic corrosion accelerates failure of the more reactive metal.
Sealant Incompatibility
Issue: Sealant specified that's chemically incompatible with adjacent materials.
Common examples:
- • Silicone sealant on EPDM roofing
- • Solvent-based sealant on foam insulation
- • Acrylic sealant in high-movement joints
Consequence: Sealant failure, water infiltration, substrate degradation.
Coating/Substrate Conflicts
Issue: Coating specified that doesn't adhere to or reacts with the substrate.
Common examples:
- • Oil-based paint over latex without primer
- • Epoxy coating on green concrete
- • Metallic paint on previously painted surfaces
Consequence: Peeling, bubbling, delamination within months to years.
Waterproofing Conflicts
Issue: Waterproofing membrane specified with incompatible adjacent materials or adhesives.
Common examples:
- • Bituminous membrane with incompatible insulation
- • TPO roofing with petroleum-based adhesives
- • Fluid-applied waterproofing over uncured concrete
Consequence: Membrane failure, water infiltration, mold, structural damage.
Warranty Implications
Material manufacturers are increasingly sophisticated about warranty exclusions. If their product is installed with incompatible materials—even if the installation was per the drawings—the warranty is void.
The Warranty Trap
Spec calls for incompatible materials: Designer doesn't catch the conflict, GC installs per drawings.
Building passes inspection: Materials installed correctly, no visible problems at completion.
Failure occurs 2-5 years later: Corrosion, delamination, water infiltration, or other latent defect appears.
Warranty claim denied: Manufacturer says "not our problem, you used incompatible materials."
Litigation begins: Owner sues GC, GC sues designer, designer's E&O gets involved.

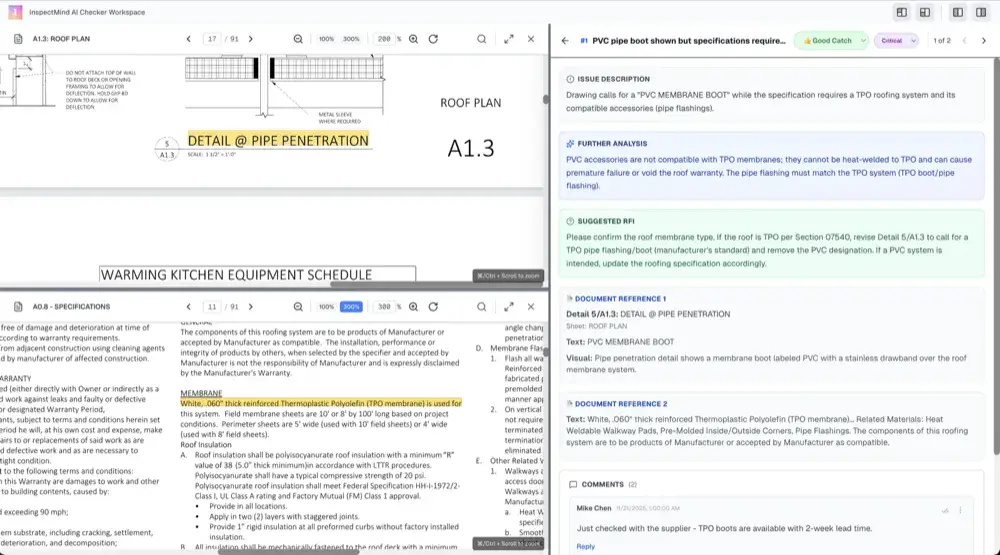

How AI Catches These Issues
AI document review can cross-reference material specifications against manufacturer compatibility requirements and industry standards:
AI Material Compatibility Analysis
- Cross-reference all material specs. Identify every location where two materials meet and check compatibility.
- Check against manufacturer requirements. Flag specifications that conflict with manufacturer installation guidelines.
- Identify galvanic series conflicts. Catch dissimilar metals that will cause corrosion without proper isolation.
- Flag warranty-voiding combinations. Identify material combinations that will void product warranties.
The Cost of Failure
Material compatibility issues are expensive precisely because they appear late:
Spec Change
Correcting during design phase
Change Order
Discovered during construction
Litigation
Latent defect discovered post-occupancy
Catch Compatibility Issues Before They Become Defects
AI document review catches material compatibility conflicts during design—when they're specification corrections, not construction defects. Every issue caught now is a warranty claim and potential lawsuit prevented later.
Conclusion
Material compatibility errors are among the most expensive types of construction defects because they hide until after completion and often void the warranties that would otherwise cover repairs. The cost to prevent them during design is negligible compared to the cost of litigation and reconstruction years later.
AI document review provides systematic material compatibility checking that human review can't match—cross-referencing every material specification against every adjacent material across thousands of pages. It's the kind of comprehensive analysis that prevents the latent defects that become expensive lawsuits.
